Presentation

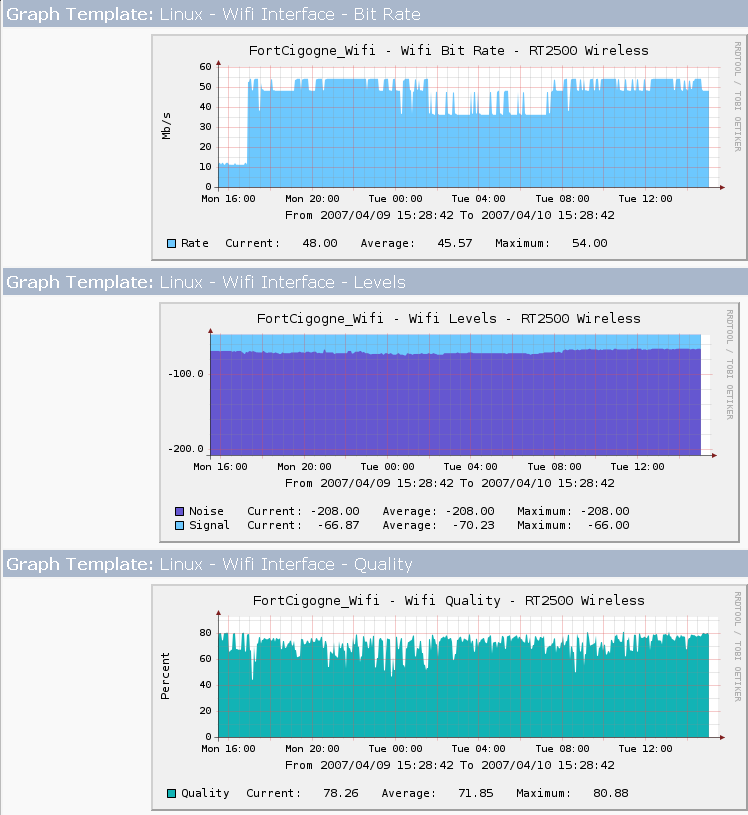

Thoses scripts and templates will allow you to create statistics for wifi interfaces on a Linux host. Only wifi specifics parameters will be graphed as traffic can be done by others methods. You will be able to see :

• Connection bit rate (Mb/s)
• Quality of the link (%)
• Signal and Noise level (dBm)

The values are gather from output of iwconfig command. Listing of interfaces is from /proc/net/wireless pseudo file.

This is my first attempt to create some templates for Cacti. So use it at your own risks :)
Please report every bug, problems or patchs.

Download

• Get Version 0.3
  md5sum: 7c1df7406afce80715544f6cecb80195

Install

1. Copy script_queries/wifiStatistics.xml script_queries directory
   cp script_queries/wifiStatistics.xml /usr/share/cacti/resource/script_queries/
2. Copy scripts/cacti_iwconfig.pl file to your scripts directory
   cp scripts/cacti_iwconfig.pl /usr/share/cacti/site/scripts/

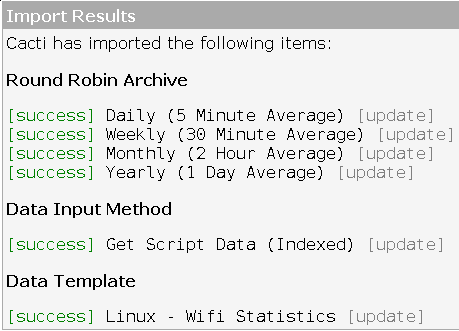

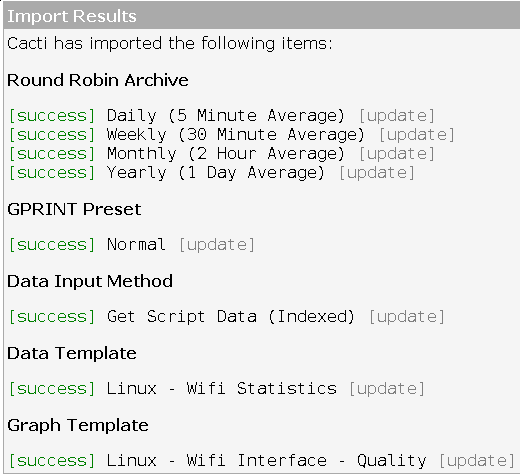

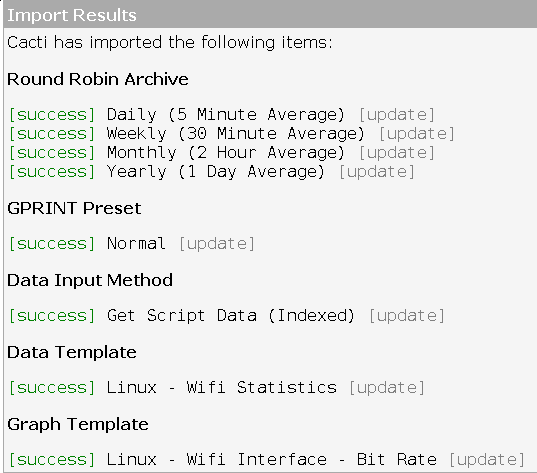

3. Import the XML files from the templates directory

   • data_query

   • data_template

   • 3 graph_template


Usage

1. Select a "Device" with some wifi interfaces
2. Add the "Linux - Wifi Statistics" "Data Query" to it

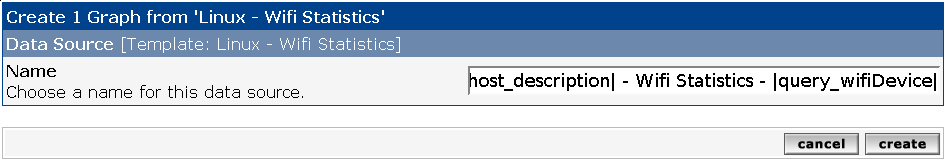

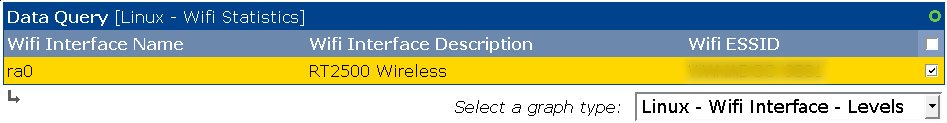

3. In the "Create New Graphs" for this host, choose the "Wifi Interface" and the "graph type" and click "create"
4. Wait a little and see your new graphs
